INDOOR MARINE TV CEILING HINGE

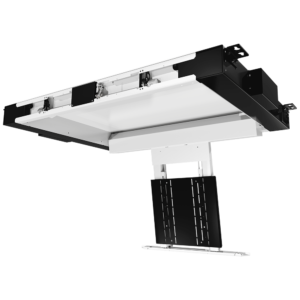

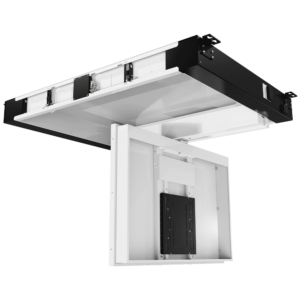

The CHR-M Range is our latest generation of Indoor Marine TV Ceiling Hinge mechanisms, suitable for hinging screens from 40” to 88” up to 100° out of a ceiling. Marine locks securely stow the mechanism in the closed position when not in use. The mechanism is designed to allow a ceiling panel to be attached to the underside of the mechanism, to match the finish of the surrounding ceiling. The CHR-M Range is also available with a standalone swivel function (CHRS-M).
| TECHNICAL SPECIFICATION | |||||
|---|---|---|---|---|---|
| Control Options | CHR4-M | RS232 / Contact Closure / IR | |||
| CHR5-M | RS232 / Contact Closure / IR | ||||
| CHR6-M | RS232 / Contact Closure / IR | ||||
| CHR7-M | RS232 / Contact Closure / IR | ||||
| CHR8-M | RS232 / Contact Closure / IR | ||||
| Finish (Custom Available) | CHR4-M | White Paint – RAL9910 | |||
| CHR5-M | White Paint – RAL9910 | ||||
| CHR6-M | White Paint – RAL9910 | ||||
| CHR7-M | White Paint – RAL9910 | ||||
| CHR8-M | White Paint – RAL9910 | ||||
| Max Rotation | CHR4-M | 100° (Programmable Max Limit) | |||
| CHR5-M | 100° (Programmable Max Limit) | ||||
| CHR6-M | 100° (Programmable Max Limit) | ||||
| CHR7-M | 100° (Programmable Max Limit) | ||||
| CHR8-M | 100° (Programmable Max Limit) | ||||
| Max Screen Dimensions (WxHxD) (Screen Depth <= 70mm) | CHR4-M | 1130 x 680 x 70mm (44 1/2″ X 26 3/4″ X 2 3/4″) |
|||
| CHR5-M | 1330 X 800 X 70mm (52 3/8″ X 31 1/2″ X 2 3/4″) |
||||
| CHR6-M | 1530 X 920 X 70mm (60 1/4″ X 36 1/4″ X 2 3/4″) |
||||
| CHR7-M | 1730 X 1010 X 70mm (68 1/8″ X 39 3/4″ X 2 3/4″) |
||||
| CHR8-M | 1980 X 1110 X 70mm (77 15/16″ X 43 11/16″ X 2 3/4 “) |
||||
| Max Screen Dimensions (WxHxD) (Screen Depth > 70mm) | CHR4-M | 1130 X 650 X 95mm (44 1/2″ X 25 9/16″ X 3 3/4″) |
|||
| CHR5-M | 1330 X 770 X 95mm (52 3/8″ X 30 5/16″ X 3 3/4″) |
||||
| CHR6-M | 1530 X 890 X 95mm (60 1/4″ X 35 1/16″ X 3 3/4″) |
||||
| CHR7-M | 1730 X 980 X 130mm (68 1/8″ X 38 9/16″ X 5 1/8″) |
||||
| CHR8-M | 1980 X 1080 X 130mm (77 15/16″ X 42 1/2″ X 5 1/8″) |
||||
| Max Screen Weight | CHR4-M | 50kg (110lbs) – Includes 10kg (22lbs) Max Add On Ceiling Panel | |||
| CHR5-M | 40kg (88lbs) – Includes 10kg (22lbs) Max Add On Ceiling Panel | ||||
| CHR6-M | 90kg (198lbs) – Includes 30kg (66lbs) Max Add On Ceiling Panel | ||||
| CHR7-M | 150kg (331lbs) – Includes 30kg (66lbs) Max Add On Ceiling Panel | ||||
| CHR8-M | 120kg (265lbs) – Includes 30kg (66lbs) Max Add On Ceiling Panel | ||||
| Mechanism Weight (approx) | CHR4-M | 105kg (232lbs) | |||
| CHR5-M | 120kg (265lbs) | ||||
| CHR6-M | 145kg (320lbs) | ||||
| CHR7-M | 180kg (397lbs) | ||||
| CHR8-M | 230kg (507lbs) | ||||
| Movement Type | CHR4-M | Motorised | |||
| CHR5-M | Motorised | ||||
| CHR6-M | Motorised | ||||
| CHR7-M | Motorised | ||||
| CHR8-M | Motorised | ||||
| SHIPPING DIMENSIONS | |||||
| SHIPPING DIMENSIONS | CHR4-M | TBC | |||
| CHR5-M | TBC | ||||
| CHR6-M | TBC | ||||
| CHR7-M | TBC | ||||
| CHR8-M | TBC | ||||
| Shipping Weight | CHR4-M | TBC | |||
| CHR5-M | TBC | ||||
| CHR6-M | TBC | ||||
| CHR7-M | TBC | ||||
| CHR8-M | TBC | ||||
