CHRT

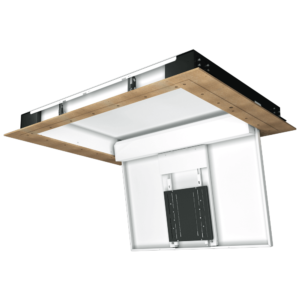

TV CEILING HINGE & TELESCOPE

The CHR Range is our latest generation of TV Ceiling Hinge with Telescope mechanisms, suitable for hinging screens from 40” to 86” up to 90° out of a ceiling before lowering the screen between 500mm (19.6”) and 750mm (29.5”) (mechanisms size dependant). Fully concealable within the ceiling cavity thanks to its Plaster In Edge, the CHRT Range is also available without telescope function (CHR), with a standalone swivel function (CHRS) or a combined swivel and telescope (CHRST).

Self adjusting limit switches in the closed position means that product set up is now even quicker and easier than ever before
An MDF “Plaster In Edge” allows for a neat installation into the ceiling, eliminating any visible on ceiling flange around the mechanism, with only the smallest of shadow gaps around the lid when closed
The CHR units are delivered ready to install as one whole unit, reducing the chance of errors upon installation and streamlining the fitting procedure
Shipped with both mechanical and electrical recovery options, ensuring that in the event of a 3rd party control issue the system can be safely accessed.

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION
Control Options	CHRT4	RS232 / Contact Closure / IR
	CHRT5	RS232 / Contact Closure / IR
	CHRT6	RS232 / Contact Closure / IR
	CHRT7	RS232 / Contact Closure / IR
	CHRT8	RS232 / Contact Closure / IR
Finish (Custom Available)	CHRT4	White Paint – RAL9910
	CHRT5	White Paint – RAL9910
	CHRT6	White Paint – RAL9910
	CHRT7	White Paint – RAL9910
	CHRT8	White Paint – RAL9910
Height Within Ceiling	CHRT4	210mm(8.3″)
	CHRT5	210mm(8.3″)
	CHRT6	210mm(8.3″)
	CHRT7	210mm(8.3″)
	CHRT8	270mm (10.6″)
Max Screen Dimensions (HxWxD)	CHRT4	680 x 1130 x 100mm (26.8 x 44.5 x 3.9″)
	CHRT5	800 x 1330 x 100mm (31.5 x 52.4 x 3.9″)
	CHRT6	920 x 1530 x 100mm (36.2 x 60.2 x 3.9″)
	CHRT7	1010 x 1730 x 100mm (39.8 x 68.1 x 3.9″)
	CHRT8	1110 x 1980 x 150mm (43.7 x 78 x 5.9″)
Max Screen Weight	CHRT4	60kg (132lbs)
	CHRT5	40kg (88lbs)
	CHRT6	90kg (198lbs)
	CHRT7	65kg (143lbs)
	CHRT8	125KG (276LBS)
Mechanism Weight (approx)	CHRT4	120kg (265lbs)
	CHRT5	140kg (309lbs)
	CHRT6	165kg (364lbs)
	CHRT7	190kg (419lbs)
	CHRT8	250kg (551lbs)
Movement Type	CHRT4	Motorised
	CHRT5	Motorised
	CHRT6	Motorised
	CHRT7	Motorised
	CHRT8	Motorised
SHIPPING DIMENSIONS
SHIPPING DIMENSIONS	CHRT4	166 x 124 x 44cm (65.4 x 48.8 x 17.3″)
	CHRT5	186 x136 x 44cm (73.2 x 53.5 x 17.3″)
	CHRT6	206 x 148 x 44cm (81.1 x 58.3 x 17.3″)
	CHRT7	226 x 160 x 44cm (89.0 x 63.0 x 17.3″)
	CHRT8	251 x 172 x 49cm (98.8 x 67.7 x 19.3″)
Shipping Weight	CHRT4	182kg (401lbs)
	CHRT5	223kg (492lbs)
	CHRT6	268kg (591lbs)
	CHRT7	321kg (708lbs)
	CHRT8	423kg (933lbs)
