LSM

TV LIFT 42″-79″

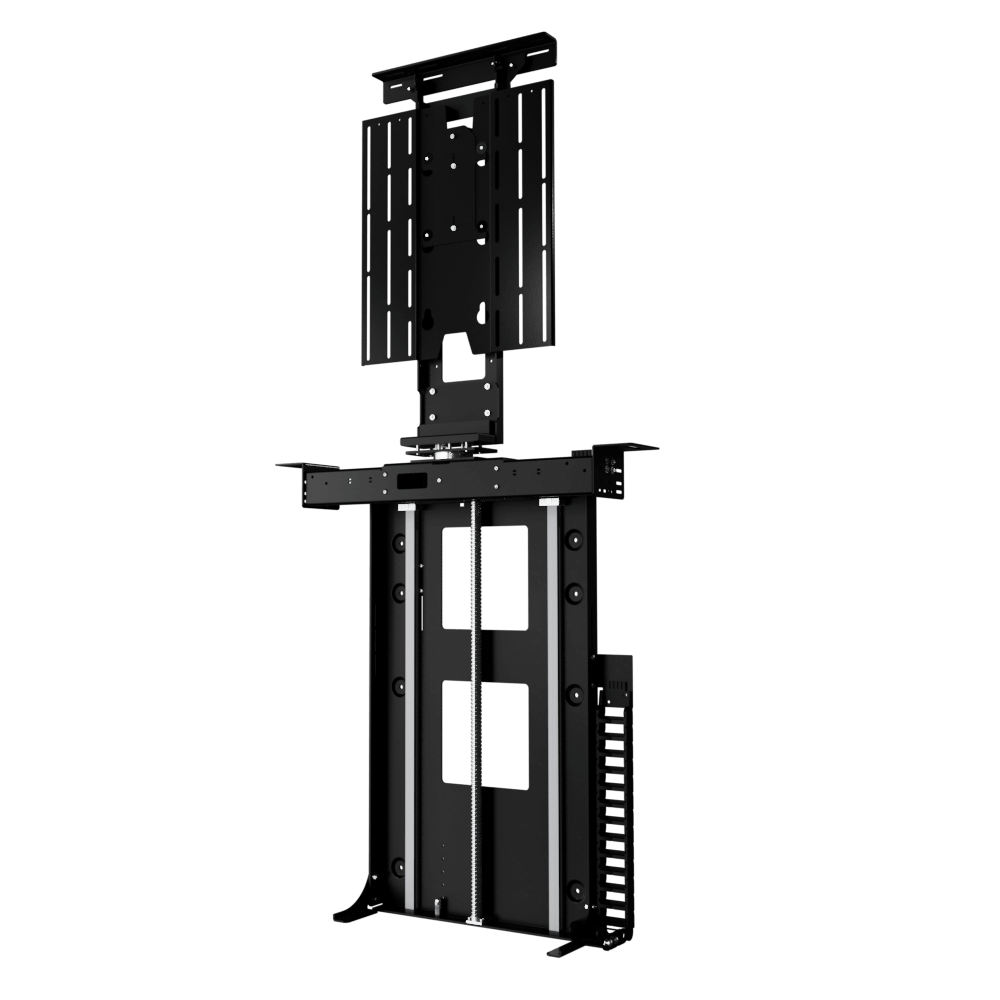

The LSM motorised TV lift mechanism is ideal for concealing screens from approximately 42″ to 79″ in a cabinet or similar space. Compatible with all major home automation control standards, such as Crestron, AMX and Lutron, the LSM range is perfect for integrating into a smart home environment.

  • Supplied with IR, Contract Control, and RS232 control options
  • Full Cable Management
  • Wide Range of Mounting Options
  • 24V DC motor – suitable for direct DC supply
  • Marine Suitable Robust Beam

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION
Control Box Dimensions LSM4 150 x 210 x 50mm
(5.9 x 8.26 x 1.96″)
LSM5 150 x 210 x 50mm
(5.9 x 8.26 x 1.96″)
LSM6 150 x 210 x 50mm
(5.9 x 8.26 x 1.96″)
LSM7 150 x 210 x 50mm
(5.9 x 8.26 x 1.96″)
LSM8 150 x 210 x 50mm
(5.9 x 8.26 x 1.96″)
Control Options LSM4 Contact Closure / IR (RF Version Available)
LSM5 Contact Closure / IR (RF Version Available)
LSM6 Contact Closure / IR (RF Version Available)
LSM7 Contact Closure / IR (RF Version Available)
LSM8 Contact Closure / IR (RF Version Available)
Decibel Rating LSM4 52dB
LSM5 52dB
LSM6 52dB
LSM7 52dB
LSM8 52dB
Finish (Custom Available) LSM4 Black Paint – RAL 9005
LSM5 Black Paint – RAL 9005
LSM6 Black Paint – RAL 9005
LSM7 Black Paint – RAL 9005
LSM8 Black Paint – RAL 9005
Internal Cabinet Height LSM4 820mm (32.28″)
LSM5 880mm (34.64″)
LSM6 950mm (37.40″)
LSM7 1060mm (41.73″)
LSM8 1270mm (50″)
Lid Type LSM4 Box Enclosure / Fixed Lid & Push Flap Options Supplied
LSM5 Box Enclosure / Fixed Lid & Push Flap Options Supplied
LSM6 Box Enclosure / Fixed Lid & Push Flap Options Supplied
LSM7 Box Enclosure / Fixed Lid & Push Flap Options Supplied
LSM8 Box Enclosure / Fixed Lid Supplied
Max Lifting Capacity LSM4 50kg (110lbs)
LSM5 50kg (110lbs)
LSM6 50kg (110lbs)
LSM7 50kg (110lbs)
LSM8 80kg (176lbs)
Max Lifting Capacity (Marine) LSM4 30kg (66lbs)
LSM5 30kg (66lbs)
LSM6 30kg (66lbs)
LSM7 30kg (66lbs)
LSM8 40kg (88lbs)
Max Screen Height LSM4 670mm (26.4″)
LSM5 730mm (28.7″)
LSM6 800mm (31.5″)
LSM7 910mm (35.8″)
LSM8 1025mm (40.3″)
Movement Type LSM4 Motorised
LSM5 Motorised
LSM6 Motorised
LSM7 Motorised
LSM8 Motorised
Output Power Supply LSM4 Yes(12V)
LSM5 Yes(12V)
LSM6 Yes(12V)
LSM7 Yes(12V)
LSM8 Yes(12V)
Power Consumption LSM4 250W – 500W
LSM5 250W – 500W
LSM6 250W – 500W
LSM7 250W – 500W
LSM8 250W – 500W
Power Supply LSM4 240V or 110V
LSM5 240V or 110V
LSM6 240V or 110V
LSM7 240V or 110V
LSM8 240V or 110V
Screen Sizes (approx) LSM4 42-50″
LSM5 50-55″
LSM6 55-60″
LSM7 60-65″
LSM8 65-79″
SHIPPING DIMENSIONS
SHIPPING DIMENSIONS LSM4 99 x 84 x 30cm
(39 x 33.1 x 11.8″)
LSM5 104 x 84 x 30cm
(40.9 x 33.1 x 11.8″)
LSM6 111 x 84 x 30cm
(43.7 x 33.1 x 11.8″)
LSM7 121 x 84 x 30cm
(47.6 x 33.1 x 11.8″)
LSM8 137 x 111 x 38cm
(53.9 x 43.7 x 15″)
Shipping Weight LSM4 35kg (77lbs)
LSM5 36kg (79lbs)
LSM6 37kg (82lbs)
LSM7 38kg (84lbs)
LSM8 96kg (212lbs)
