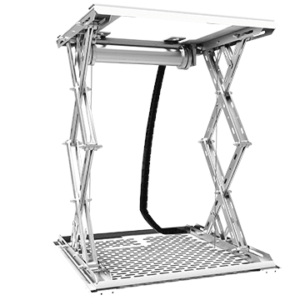

Using triple-arm scissor structure made from aluminum alloy,
the projector lift can avoid swinging problems during operation.
Anti-snapping joints design prevents dropping accidents.
Ultra-thin aluminum alloy material helps the lift reduce in weight and size.
The minimal thickness without projector is only 163mm.
The provided AC power cable is fixed on the middle arm with simple wiring and protection.
Max travel distance reaches 4000mm, and the max loading weight is 20kg.
(Different models vary in thickness, travel distance, etc. Please refer to the specification form.)
Model | Body Size (mm) L x W |
Cut-out Size (mm) |
Max.projector Size (mm) |
Body Thickness (mm) | Max.Travel Distance (mm) | Loading Capacity (KG) | Distance from Ceiling to False Ceiling (mm) |
Suitable Projector Power | Built-in Cable | Smart Control |
CM1000X | 580×589 | 600×600 | 500×500 | 163 | 1000 | ≤20 | >436 | 200v,<1200W | AC power cord | RF,RS232,485 |
CM1500X | 185 | 1500 | >485 | |||||||
CM2000X | 234 | 2000 | >534 | |||||||
CM3000X | 281 | 3000 | >581 | |||||||
CM4000X | 375 | 4000 | >675 |
